Riven Edgemere Interlocking Concrete Slate



Riven Edgemere has a randomised texture applied to the surface to ensure an attractive and variegated appearance, and a finish which closely resembles natural slate.

A+ Environmental credentials (BREEAM)
Compatible with Marley SolarTile®
Excellent certification for BES 6001
Available with a wide range of fittings and accessories
Compatible with our full roof system
Cost-effective affordable solution
17.5° Minimum pitch
Thin leading edge for slate like appeal
Riven surface for closer resemblance to natural slate
Download our Spec Guide

Compatibility, functionality and beautiful aesthetics for the perfect finish across every roof style

Our extensive range of roof fittings and accessories work with all elements of the full Marley Roof System, ensuring product specification and installation is quicker and easier. What's more, a complete Marley Roof System comes with a 15 year guarantee for further security and peace of mind. Take a look at our full range of roof fittings and accessories.

Now available in 2 stunning colours and with a riven surface to closely resemble natural slate.

Experiencing the vast variety of textures and colours that our roof tiles provide up close, can guide you in the decision making process when selecting roof coverings. Our efficient sample service can help you in the process.

Request sample
*Samples shown above are for colour only, Riven Edgemere has a randomised textures on the surface.

Riven Edgemere is a single-lap solution that allows quick and easy installation and is compatible with our full range of ventilation and dry fix systems.

The clean, sleek appearance of these slate-like tiles offers enormous kerb appeal. These tiles are only 18mm thick and are laid with a special broken-bond laying technique, unlike standard interlocking tiles and great performance at pitches as low as 17.5°.

Accreditation to the BES 6001 framework standard for 'Responsible Sourcing' means that projects using our concrete interlocking slates can now achieve extra credits under BREEAM and the Home Quality Mark (HQM).



A randomised texture on the surface of each tile ensures an attractive variegated appearance with depth and tone, providing a finish that resembles natural slate.

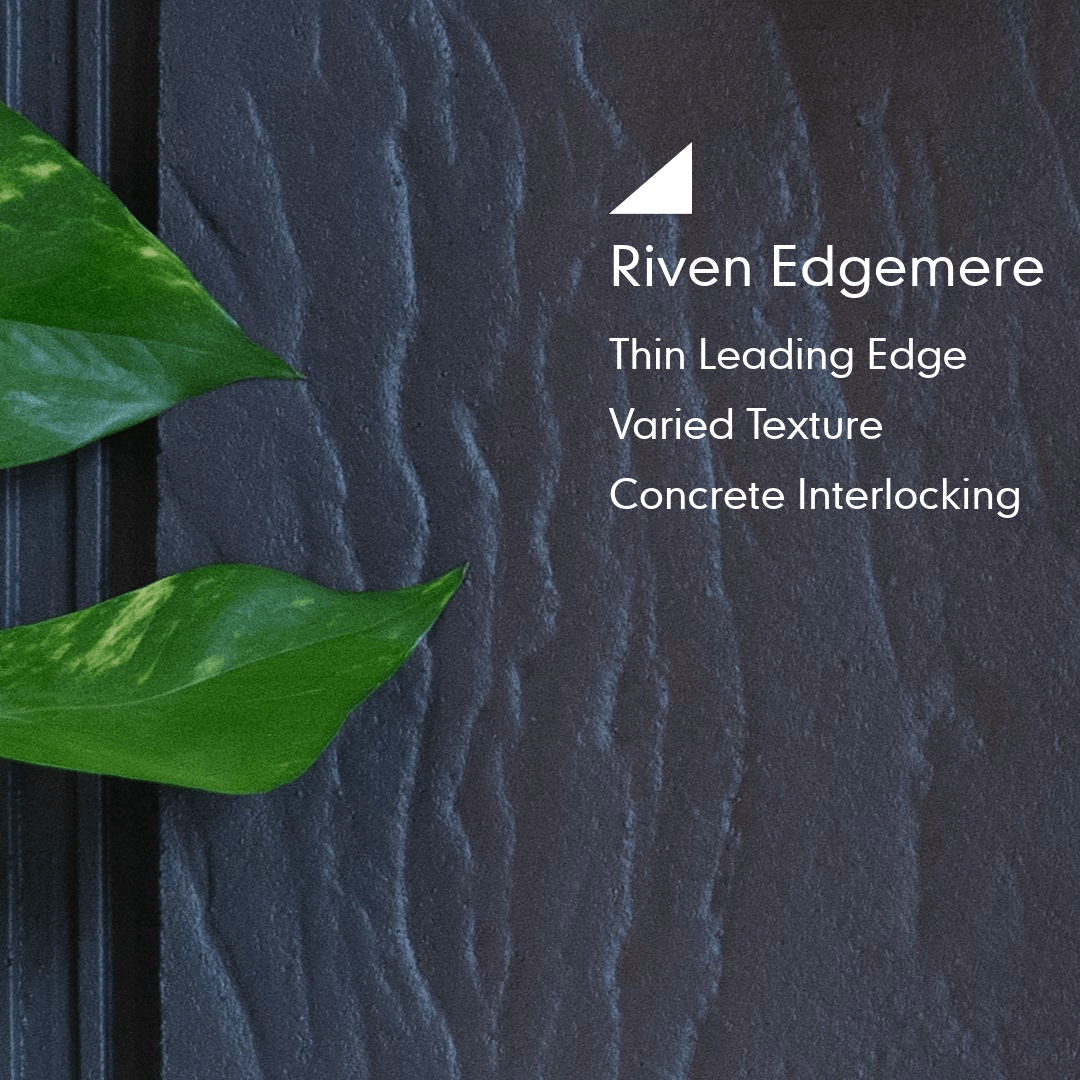

Concrete Tile with text that reads: 'Riven Edgemere: Thin Leading Edge, Varied Texture, Concrete Interlocking'
Technical specification

Size of Tile
420mm x 330mm
Minimum Pitch

22.5° Smooth (75mm headlap)

17.5° Smooth (100mm headlap)

Maximum Pitch 90°
Minimum Headlap
75mm (22.5° and above)
100mm (below 22.5°)
Maximum Gauge
345mm
Cover Width
298mm (nominal)
Covering Capacity

9.7 slates/m² at 75mm headlap

10.5 slates/m² at 100mm headlap

Weight of Tiling
44kg/m² (0.43kN/m²) at 75mm headlap
47.5kg/m² (0.47kN/m²) at 100mm headlap
Battens Required

2.9 lin.m/m² at 75mm headlap

3.1 lin.m/m² at 100mm headlap

Batten Size Recommended

38 x 25mm for rafters/supports not exceeding 450mm centres

50 x 25mm for rafters/supports not exceeding 600mm centres

Tile Nails
Slate nails 45mm x 3.35mm
Hanging length
395mm (nominal)
Fixing clips
Eaves, verge and tile clips, SoloFix
Authority
BS EN 490
